Integrated Cultivation Control System

The GrowControlTM GC-Plus control system features many of the same features and components of the GC-Pro in an easy to set-up, plug and grow package. Manage, monitor, and control all aspects of your climate equipment and hydroponics system including automatic dosing. With 8 programmable outlets integrated into the controller, the operator simply pugs equipment or trigger cords into the controller; there are no external relays or hard-wiring required. Includes all of the standard intelligent functions you would expect in a climate control system including hot-fire prevention, output delay sequencing to prevent load spikes, alarms and alerts, trending and data logging, remote access and more!

What Can AgrowTek Control System Do?

Sends Email / MMS Alerts - Get Updates from Any SmartPhone

Access Your Grow From the Internet

Sensor Options

Dual-Zone Control

Free PC Software

FlexnologyTM

The GC-Plus is built with Agrowtek's exclusive FlexnologyTM which allows the grower to tailor the controller's functions precisely to their operation's requirements. A large 'tool box' of control functions is provided for the user to select from and assign to the outlets as required for the equipment to be controlled.

Complete Climate Control

Fully automate up to two zones with independent controls for cooling, heating, humidification, dehumidification, CO2 injection and ventilation with boost timing, lighting timers and light flip box controls, vent/shade/curtian position controls for greenhouses. Featuring a large array of different timers including precision repeat cycle timers (in minutes or seconds,) 24-hour timers, 24-hour cancellation timers, combination 24-hour cycle timers, off-delay timers, re-start delay timers and hour meters.

Fully Automated Hydroponics Dosing (applicable models)

GrowControlTM systems take the manual work out of maintaining a hydroponics system. Fully automate and schedule reservoir changes, nutrient dosing and pH control. Mix volumetric batches or add Agrowtek's hydro sensor kit to monitor and maintain pH, EC and temperature automatically.

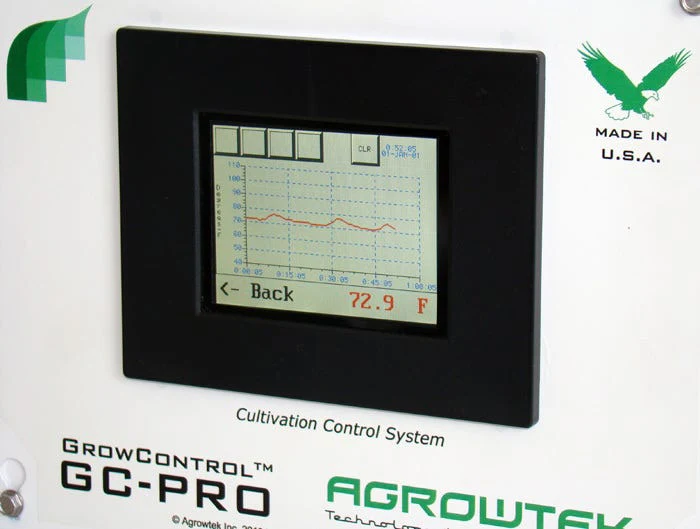

AgrowTouchTM Touch Screen

An industrial strength touch screen interface is available which allows fast and easy access to all settings in the controller including manual over-rides of all equipment, adjustment of all settings, graphical display and history of all sensor readings, alarm history display and more. On-screen help provides the operator with quick tips and describes each function of the controller. For economical or starter applications, the GC-Pro can be adjusted and monitored with the free PC software.

RX / CX Relays

The GC-Plus can be used with Agrowtek's RX1 and CX series relays and contactors equipped with a trigger cord option. The trigger cord plugs into the GC-Plus outlet of choice to switch on a remote RX1 relay or CX contactor. Relays and contactors allow the GC-Plus to switch heavy currents or high voltage (240Vac) to operate lights and other equipment that requires more than 15Amps/120Vac.

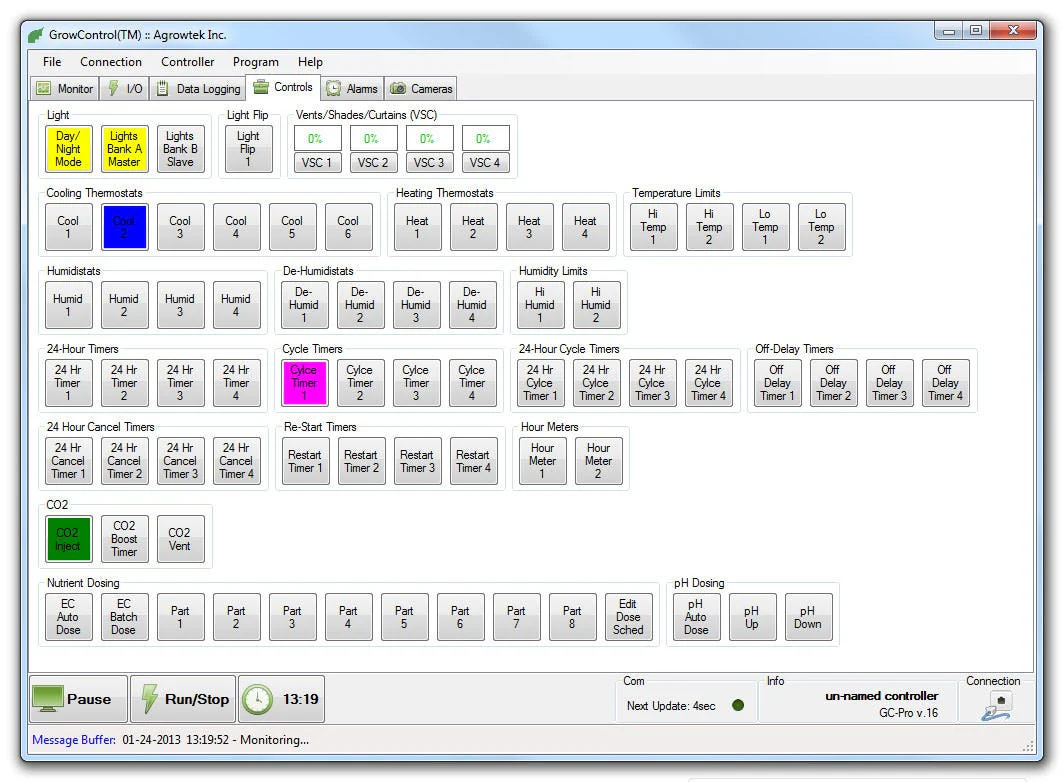

Free PC Software
GrowControlTM GC-Pro includes a powerful PC application offering full control of the system. The GC-Pro can be operated without a touch-panel interface and with only PC software for economy applications. Features include graphical and spread-sheet data logging, status and control of inputs, outputs and sensor readings, all controls and settings, email alerts and more. (connect via serial port, or ethernet connection available for additional cost)

Features:

8x Fully Programmable 120V/15A Outlets

8x Analog Sensor Channels

Dual-Zone capable; control two environments

Large 'tool box' of flexible, advanced control functions

AgrowTouchTM Touch-screen with live trending optional

Serial port standard; Ethernet port optional

Security levels with password protection

Powerful PC Software included FREE

Heavy duty powder-coated sheet-metal enclosures

120VAC / 15 Amps Capacity

3-Year full factory warranty ”“ Made in USA

Includes:

Aspirated Precision Electronic Climate Sensor with 15ft cable (Air Temperature, Relative Humidity & Light Irradiance)

Serial PC Communication Port

GrowControlTM Software and User Manuals on CD

6ft Power Cord

Stages:

(2) Lighting Timers (each with secondary delay timer)

(1) Light-Flip Control for Flip Box Operation

(2) Day/Night Zones/Outputs

(2) Heating Thermostats

(4) Cooling Thermostats

(2) Humidify Humidistats

(2) Dehumidify Humidistats

(2) Evaporative Cooling Limit-stats

(2) CO2 Injection & Ventilation Controls w/Boost Timer

(4) 24-Hour Timers

(4) Standard Cycle-Timers (mins or secs)

(4) 24-Hour Scheduled Cycle Timers

(4) Off-Delay Timers

(4) Re-start Delay Timers

(4) 24-Hour Operation Band Timers

(2) Hour Meters

(1) Nutrient Dosing control with (4) proportional stages each, batch dosing, and 16 set-point scheduling

(1) pH Dosing Controls with (1) up and (1) down stage each

High & Low Alarms & Limits

Additional Options Available - please call us for pricing on optional accessories and upgrades

AgrowTouchTM 4" Color Touch Screen = $399.00

Additional Sensor #1- Indoor Climate + CO2 = $399.00

Ethernet Communication Port = $279.00

Additional Sensor #2- Indoor Climate = $249.00

Additional Sensor #2- Indoor Climate + CO2 = $648.00

Additional Sensor #2- pH/EC/Temp Kit = $599.00

Serial to USB Converter cable

Agrowtek - Brand

AgrowTek GC-XO Slave Expansion Controller

AgrowTek GC-PLus Control System with 8 120V/15A oulets

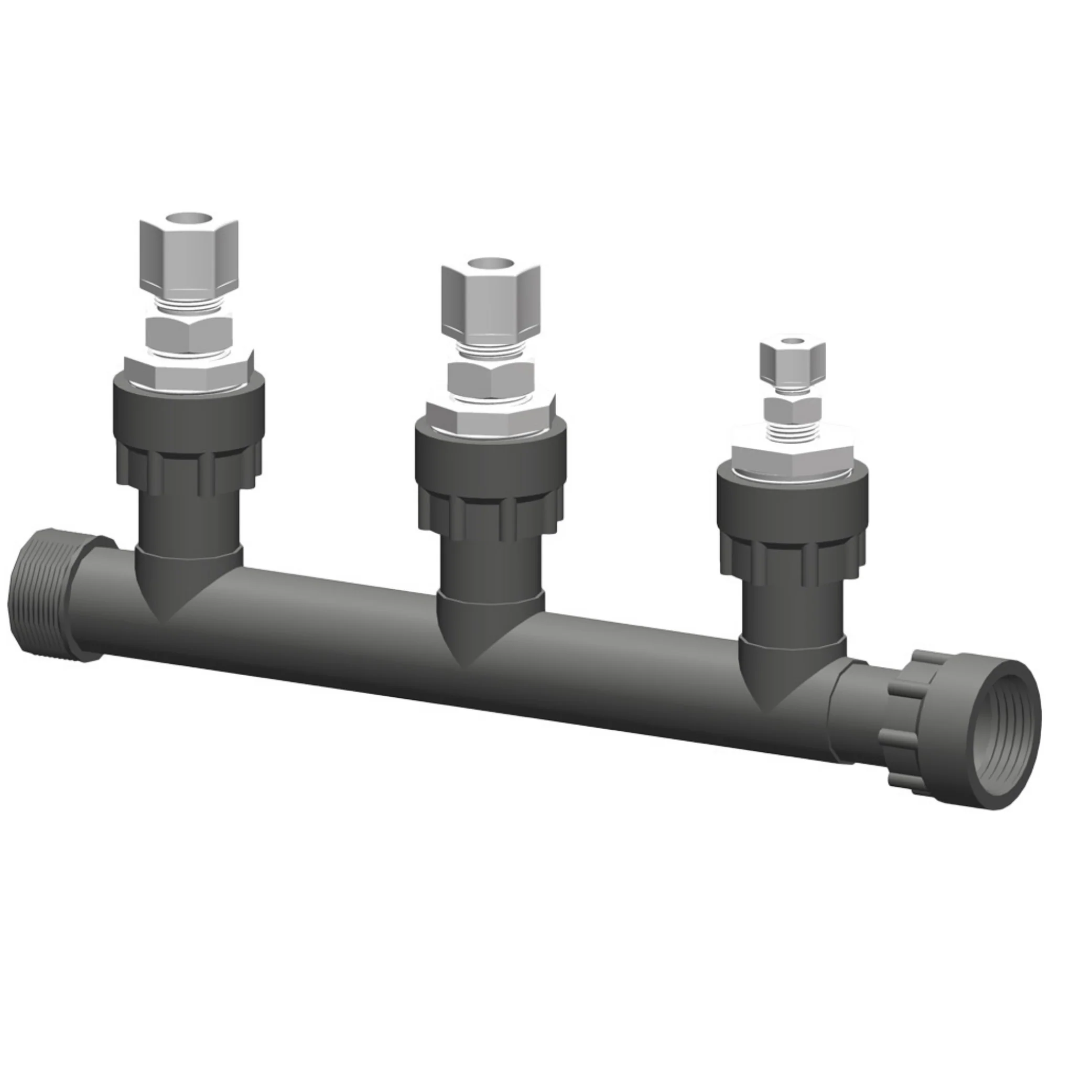

Agrowtek 3-Port Sensor Manifold 1'' | Hydroponic Inline
