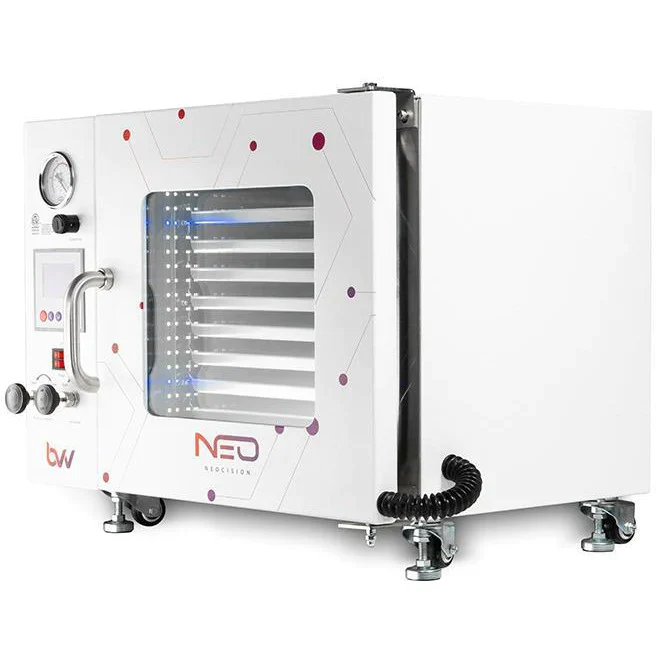

0.9CF BVV Neocision Certified Lab Vacuum Oven - 5 Wall Heating, LED's, 8 Shelves Standard

Performance Capabilities:

At BVV, we make every effort to provide oven performance capabilities in a standardized format. We're not interested in juking our stats to make a sale. Instead, our goal is to provide quality, transparent production capabilities that meet the demands of our professional customers.

Temperature Stability: ±1.0 °
Temperature Range: RT+18 °-212 °F
Temperature Uniformity: within 7% of the temperature setpoint.
Heat-Up Time: 45 minutes to preheat. Optimal saturation reached in 120 minutes, over 30 minutes faster than competitors.
Ultimate Vacuum: <500 µmHg / mTorr / micron
Time to Vacuum: 4 minutes to 29"Hg using our VE Series 4cfm Dual Stage Vacuum Pump.
Vacuum Hold: guaranteed to lose less than 1"Hg (25.4 torr) in 24 hours.

0.9CF BVV Neocision Certified Lab Vacuum Oven -Heating Characteristics Chart

Technical Data:

Electrical		Shelving
Voltage	120V	Ships With	8 Slide-in Shelves
Frequency	60Hz	Shelf Dimensions (LxW)	11.5" x 11.25"
Power	550W	Shelf Capacity	129 in2
Current	10A	Total Shelf Capacity	1035 in2 / 7.2 ft2
Plug	IEC C13 (unit ships with detachable NEMA 5-15p cable)	Safety
Internal Chamber		Seal	Silicone on Tempered Glass
Heating	Superior 5 Wall Heating (left, right, top, bottom, rear)	Window Dimensions (LxH)	11.75" x 11"
Temperature Range	RT+18 °-212 °F	Lights	4 strips of LEDs provide clear, bright view of interior
Chamber Material	Stainless Steel	Handle	No plastic, all metal parts for lifetime durability
Dimensions (LxWxH)	10L (10000ml)	Exterior
Vacuum Gauge		Dimensions (LxWxH)	24.25" x 19" x 20.75"
Style	Glycerin-filled for accuracy and longevity	Weight	115 lbs
Range (units)	-30 to 0 (inHg) / -1 to 0 (bar)	Support	Heavy Duty Casters and Adjustable Leveling Feet
Connections		Safety
Vacuum Inlet	KF25 / NW25, quarter-turn valve	Electrical	Built-in, resettable, overcurrent circuit breaker
Purge Inlet	5/16" Barbed, 10-turn valve	Thermal	Automatic overtemperature shutoff
Atmospheric Release	Quick-release dial

Capacity and Throughput Planning

Oven capacity requirements vary widely by the producer. We wanted to create a method to assist in determining the best oven match for your operation, based on a few of the parameters of your extraction and of your desired purge. We based this formula on an expected extraction yield of 25%, with an extract-density of 1 g/in2. Using the following variables, this formula is designed to provide an estimate of your required shelving capacity:

Size = Extraction Batch Size (lbs)
Number = Runs per 24h Period
Purge = Your desired purging duration (hours)
Area Required (ft2) = [(Size) * (Number) * (Purge+1)] / 122
Area Required (in2) = (Size) * (Number) * (Purge+1) * 1.18

Note: This item is a freight ship item and will ship Via Ground Freight. Freight Time is 2-5 Days. West Coast 5 Days, Midwest 2 days, East Coast 3-4 days.
