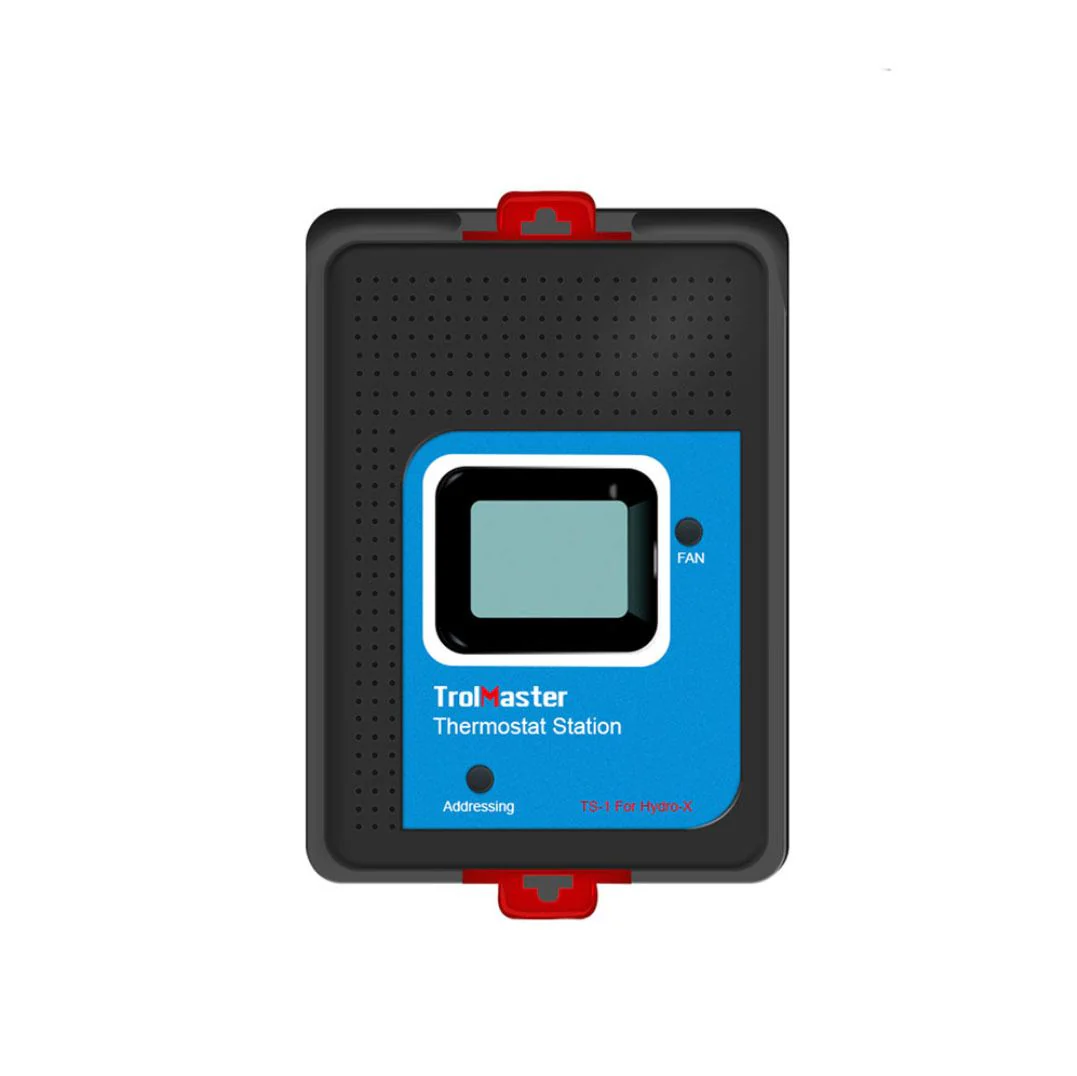

TS-1 Thermostat Station is specifically designed to replace the traditional thermostat to control Commercial AC units. It will control your AC system by Day/Night setpoint base on the photocell status.

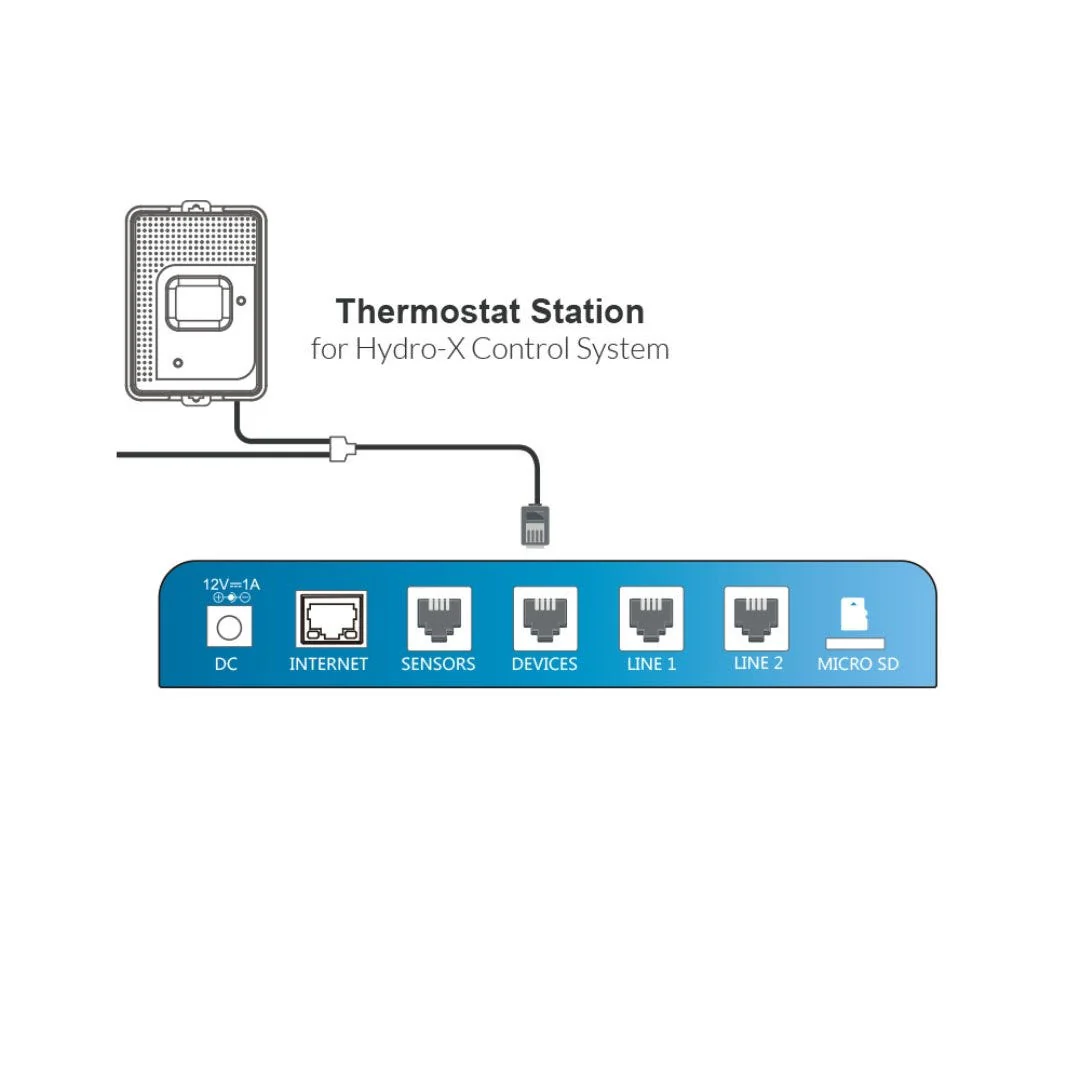

Connect the TS-1 to where your thermostat is on the wall using preexisting RWYG wires, now you can use the TS-1 in conjunction with the Hydro-X to control commercial AC units easily. Choose your desired temperature setpoints for the Day / Night mode (see Temperature Settings in Hydro-X's instructions), the TS-1 will turn on/off Cooling Mode or Heating Mode automatically for the connected AC units based on that setpoint.

Features:

LCD Display, Easy Operation
Seamless Connection with Hydro-X
Micro-SD for Firmware Upgrade
Address Assignment
Plug & Play

Specifications:

Output Voltage: 0~11.5V
Maximum Current: 0.2A
Working Environment: Temperature 32-122 °F, Humidity≤90%
Package Dimensions: 6.2"(L) x 3.4"(W) x 3.4"(H)

Package Contents:
1 x Thermostat Station (TS-1)
1 x 16ft RJ12 Cable
1 x 4ft RJ12 Cable
1 x RJ12 T-Splitter
