AC Infinity AIRLIFT T-Series, Shutter Exhaust Ventilation Fan with Temperature and Humidity Controller
AC Infinity AIRLIFT T-Series, Shutter Exhaust Ventilation Fan with Temperature and Humidity Controller
AC Infinity AIRLIFT T-Series, Shutter Exhaust Ventilation FanSMART PROGRAMMING
The controller included with each unit features active temperature and humidity monitoring. Fan speeds can be programmed to automatically adjust to high and low temperatures and humidity. The program can be manually set to run continuously or on a timer at custom speeds. Also features alarm warnings, fan failure alerts, eco-mode, and backup memory. Included 12-foot corded sensor probe plugs into the controller to provide temperature and humidity readings. The controller can control up to two AIRLIFT series fans.
HEAVY-DUTY PERFORMANCE
Features steel shutters that are weather and corrosion resistant, and automatically closes when not in use. The blades and impeller are constructed of lightweight aluminum, weight-balanced to reduce vibrations. Utilizing an innovative EC motor that is controlled electronically using PWM (Pulse Width Modulation), the fans can maximize airflow while reducing noise and power consumption. The fully-enclosed motor is also permanently lubricated and houses dual-ball bearings that are rated at 67,000 hours. The unit is IP-44 rated to be highly resistant to dust and liquids, and performs well even in harsh environments.
T-Series models include an intelligent controller with temperature and humidity programming, adjustable fan speed control, timer, and alarm system.
| Total Airflow | 631 CFM |
| Total Noise | 67 dBA |
| Static Pressure | 96 Pa |
| Operating Voltage | 100-240V AC |
| Power | 50W |
| Current | 0.75A |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140 °F |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
| Total Airflow | 830 CFM |
| Total Noise | 62 dBA |
| Static Pressure | 73 Pa |
| Operating Voltage | 100-240V AC |
| Power | 54W |
| Current | 0.75A |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140 °F |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
| Total Airflow | 1513 CFM |
| Total Noise | 68 dBA |
| Static Pressure | 70.46 Pa |
| Operating Voltage | 100-240V AC |
| Power | 70W |
| Current | 0.95 A |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140 °F |
| Fan Bearings | Dual Ball |
| L10 Life Expectancy | 67,000 Hours |
| Total Airflow | 2560 CFM |
| Total Noise | 67 dBA |
| Static Pressure | 25.9mm-H2O |
| Operating Voltage | 100-240V AC |
| Power | 100W |
| Current | 1.35 A |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140 °F |
| Fan Bearings | Dual Ball |
| L10 Life Expectancy | 67,000 Hours |
- A high-airflow exhaust fan designed to ventilate out heat, moisture, odor, and dust from various spaces.
- A programmable controller with a corded probe that can adjust fan speeds in response to temperatures and humidity.
- Innovative EC-motor with PWM-control maximizes airflow while reducing energy consumption and noise levels.
- Features steel shutters, aluminum blades, and IP-44 rated to be highly resistant to liquid and dust.
- Fan Size: 10” | Dimensions: 13.0 x 13.0 x 5.9 in. | Airflow: 631 CFM | Noise: 67 dBA | Bearings: Dual Ball

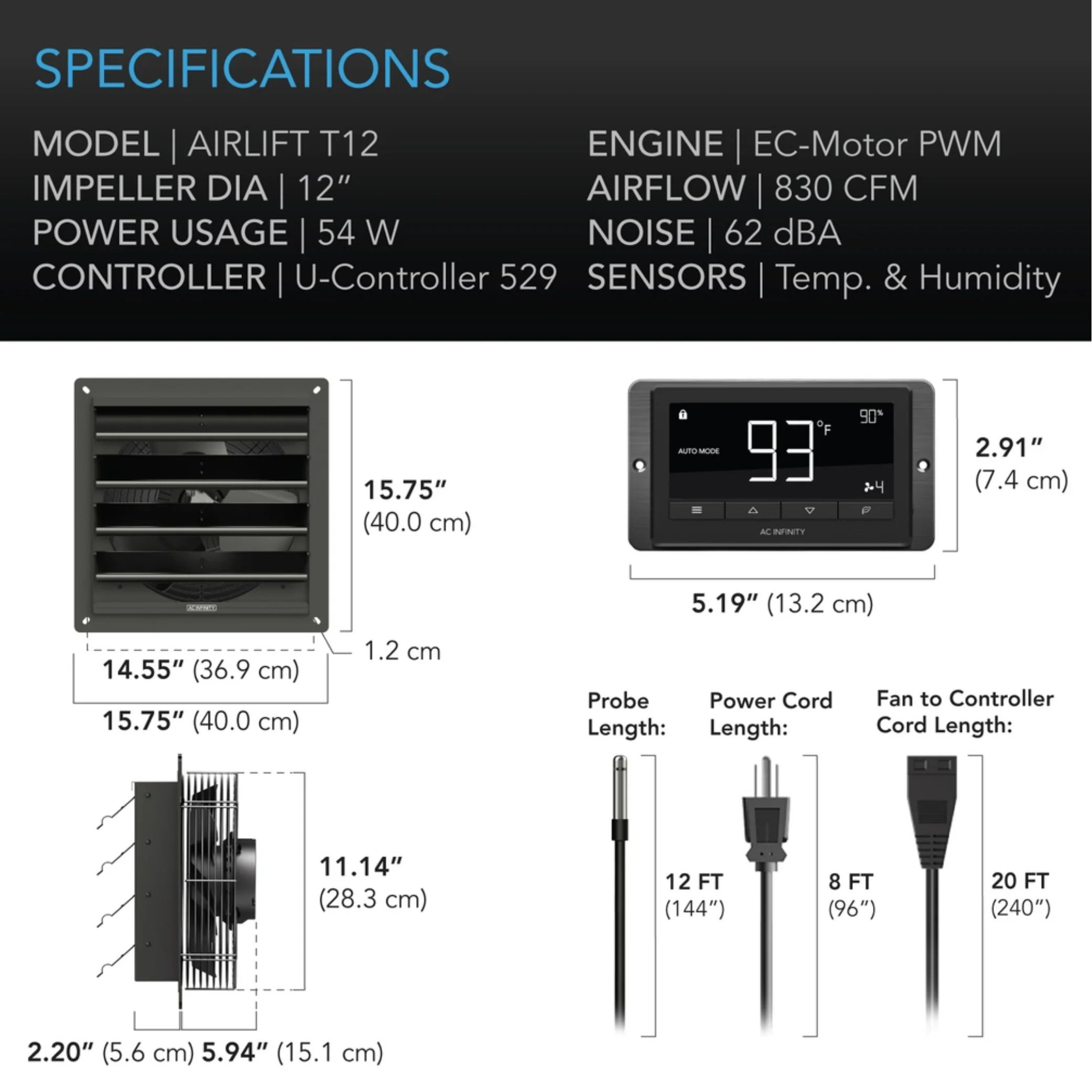

- Fan Size: 12” | Dimensions: 15.75 x 15.75 x 8.14 in. | Airflow: 830 CFM | Noise: 62 dBA | Bearings: Dual Ball

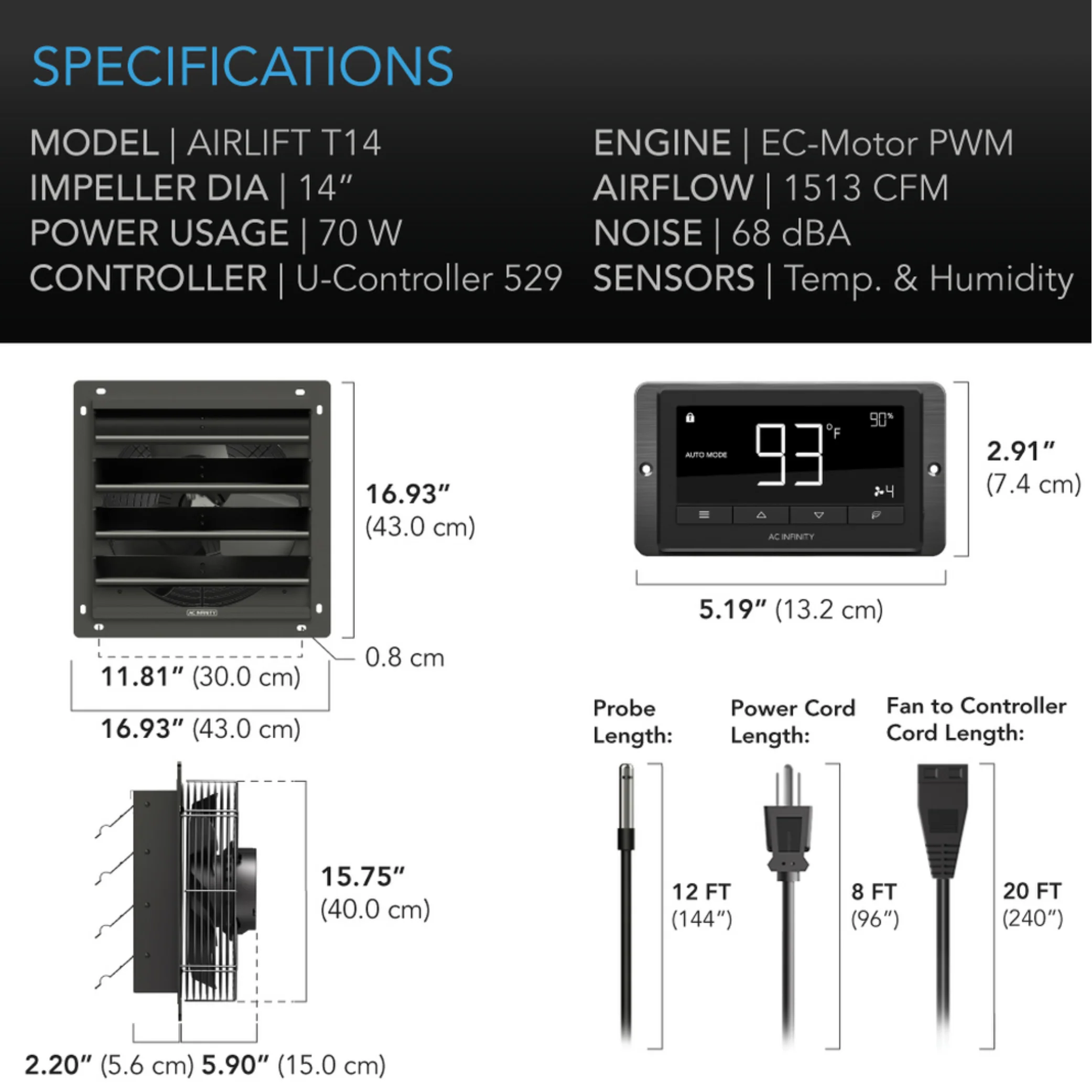

- Fan Size: 14” | Dimensions: 16.93 x 16.93 x 8.1 in. | Airflow: 1513 CFM | Noise: 68 dBA | Bearings: Dual Ball
- Fan Size: 16” | Dimensions: 19.09 x 19.09 x 7.72 in. | Airflow: 2560 CFM | Noise: 70 dBA | Bearings: Dual Ball
