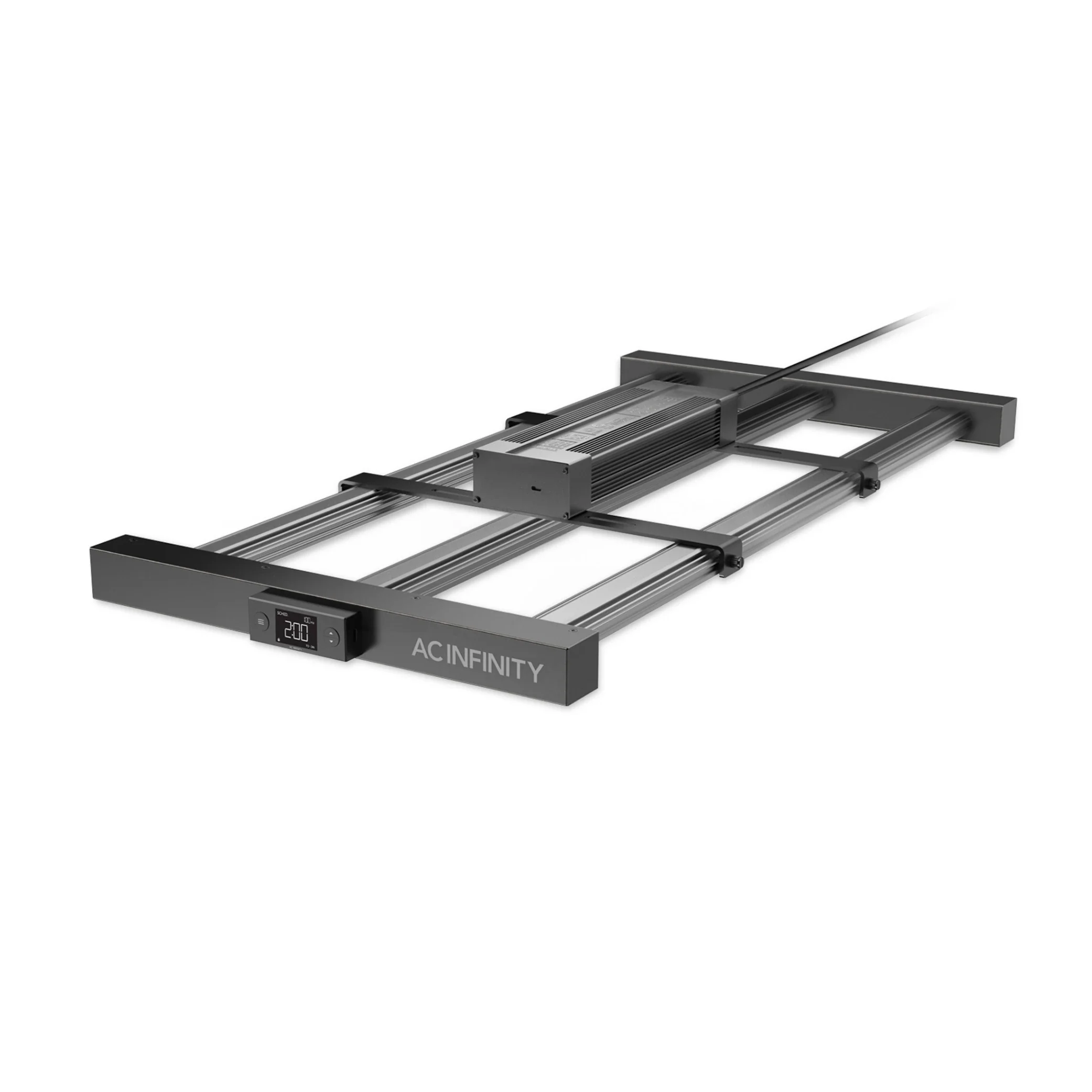

AC Infinity IONFRAME EVO3, Samsung LM301H EVO Commercial LED Grow Light, 280W, 2x4 ft.

The AC Infinity IONFRAME EVO3, Samsung LM301H EVO Commercial LED Grow Light is a high-performance lighting solution tailored for indoor grow tents and expansive grow spaces. This 280W grow light integrates cutting-edge Samsung LM301H EVO diodes, offering an exceptional efficiency of 3.14 µmol/J PPE, making it a prime choice for professional horticulturists seeking to maximize plant growth and yield.

Key Features:

1. Samsung LM301H EVO Diodes:
   • Efficiency: The latest in horticulture lighting, these diodes surpass the performance of LM301B, LM301H, and Bridgelux 3030 chips.
   • Spectrum: Delivers a full light spectrum with added 395 nm UV, 660 nm red, and 730 nm far-red diodes, perfect for all growth stages.
2. Smart Controls:
   • Schedule Programming: The included controller enables custom light schedules, automatically adjusting based on the time of day.
   • Brightness Levels: Offers 10 intensity levels to optimize light exposure.
   • UIS™ Platform Compatibility: Integrate with the UIS platform for advanced automation and remote control via the AC Infinity app.
3. Optimal Light Distribution:
   • Algorithmic Spacing: Diodes are precisely spaced to ensure even light coverage and deep canopy penetration, reducing hotspots.
   • Bar-Style Fixture: Designed to enhance light distribution, ideal for vegetative (3x5 ft.) and flowering (2x4 ft.) stages.
4. Heat Management:
   • Passive Cooling: The detachable LED driver aids in heat dissipation and allows remote mounting for the balanced thermal load.
   • Durable Construction: Built with robust steel and aluminum, the fixture is IP-65-rated for humidity resistance and features magnetic mounting.
5. Daisy-Chaining Capability:
   • Expandability: Supports daisy-chaining up to 80 grow lights, enabling scalable grow setups.

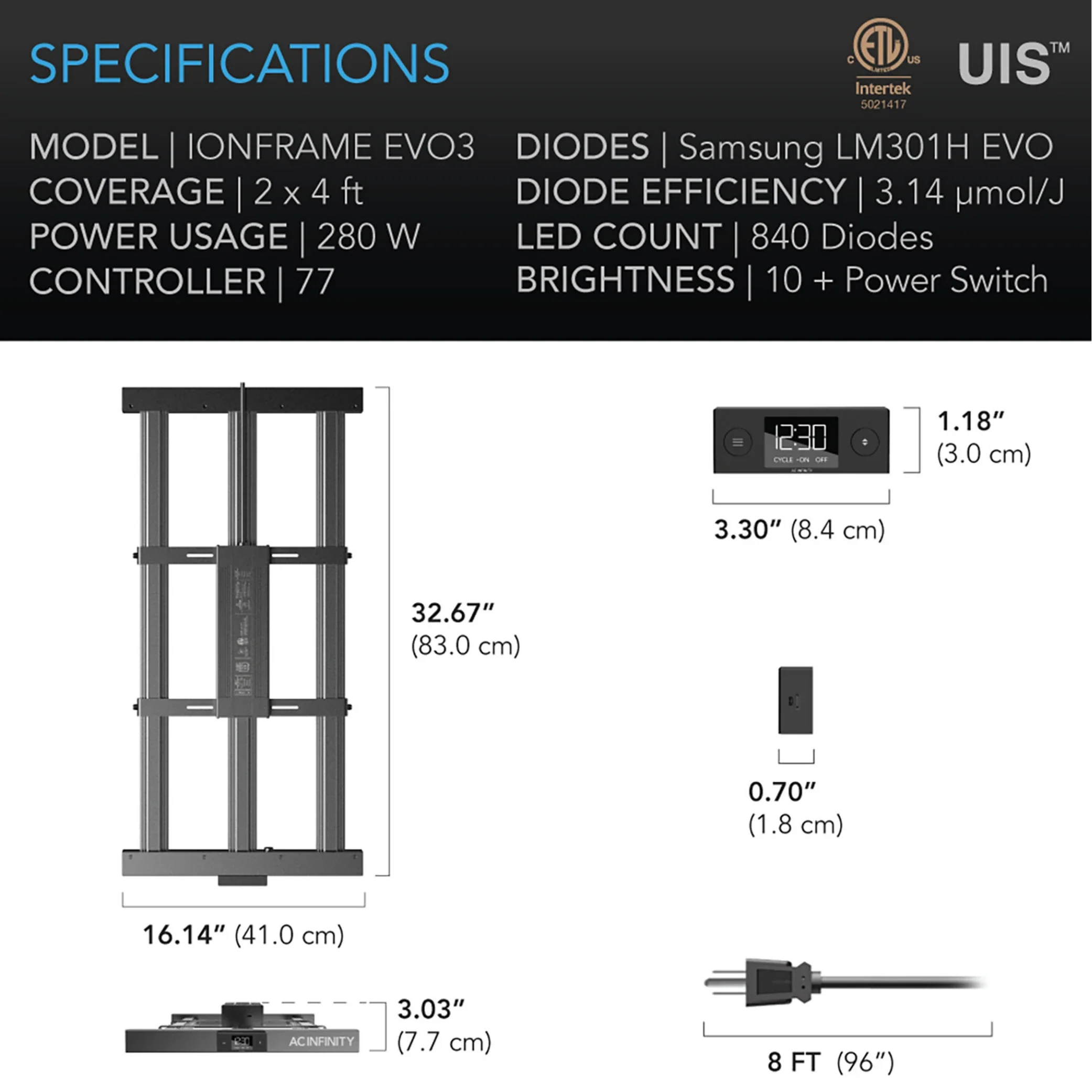

Product and Mounting Dimensions:

• Light Dimensions: 16.14 x 32.67 x 3.03 in. (41.0 x 83.0 x 7.7 cm)
• Driver Dimensions: 7.16 x 1.57 in. (18.2 x 4.0 cm)

Performance and Technical Specifications:

• Coverage: 2 x 4 ft.
• Diodes: Samsung LM301H EVO
• Spectrum: 395nm, 660nm, 730nm, 3000K, 5000K
• Total Chip Count: 840 (including 537 EVO 3000K, 270 EVO 5000K, 3 Seoul 395 nm, 27 OSRAM 660 nm, 3 OSRAM 730 nm)
• LED Driver: SOSEN-320W
• Efficiency: 3.14 µmol/J
• PPFD: 1745 PPFD
• Wattage: 280W
• Voltage: 100-277V AC
• Frequency: 50/60 Hz
• Amps: 2.8 A
• Controller: Schedule Controller
• Power Connector Type: US Plug (NEMA 1-15 Type-A)
• Operating Humidity: 35 to 85% RH
• Operating Temperature: 32 to 140 °F
• Waterproof Rating: IP-65
• Life Expectancy: 50,000 Hours

Elevate your grow space with the IONFRAME EVO3, providing exceptional efficiency, smart control features, and superior plant growth performance.

Product and Mounting Dimensions

• Light Dimensions
  16.14 x 32.67 x 3.03 in. (41.0 x 83.0 x 7.7 cm)

• Driver Dimensions
  7.16 x 1.57 in. (18.2 x 4.0 cm)

Product Performance and Technical Specs

• Coverage
  2 x 4 ft.

• Diodes
  Samsung LM301H EVO

• Spectrum
  395nm, 660nm, 730nm, 3000K, 5000K

• Chip Count (Total)
  840

• Chip Count (EVO 3000K)
  537

• Chip Count (EVO 5000K)
  270

• Chip Count (Seoul 395 nm)
  3

• Chip Count (OSRAM 660 nm)
  27

• Chip Count (OSRAM 730 nm)
  3

• LED Driver
  SOSEN-320W

• Efficiency (Single Diode)
  3.14 µmol/J

• PPFD
  1745 PPFD

• Wattage
  280 W

• Voltage
  100-277V AC

• Frequency
  50/60 Hz

• Amps
  2.8 A

• Controller
  Schedule Controller

• Power Connector Type
  US Plug (NEMA 1-15 Type-A)

• Operating Humidity
  35 to 85% RH

• Operating Temperature
  32 to 140 °F

• Waterproof Rating
  IP-65

• Life Expectancy
  50,000 Hours
